Product name : Custom lead-free tin furnace110v 220v
Item : CM101
Model : CM101
power : 800W
temperature : 0-600
size : 100X100X45MM
 Enlarge Image                   Back
             [Next Product]→


Details:
 Customizing the lead-free tin furnace
Plug: middle gauge plug, American gauge plug, British gauge plug, European gauge plug
Voltage: AC220V AC110V

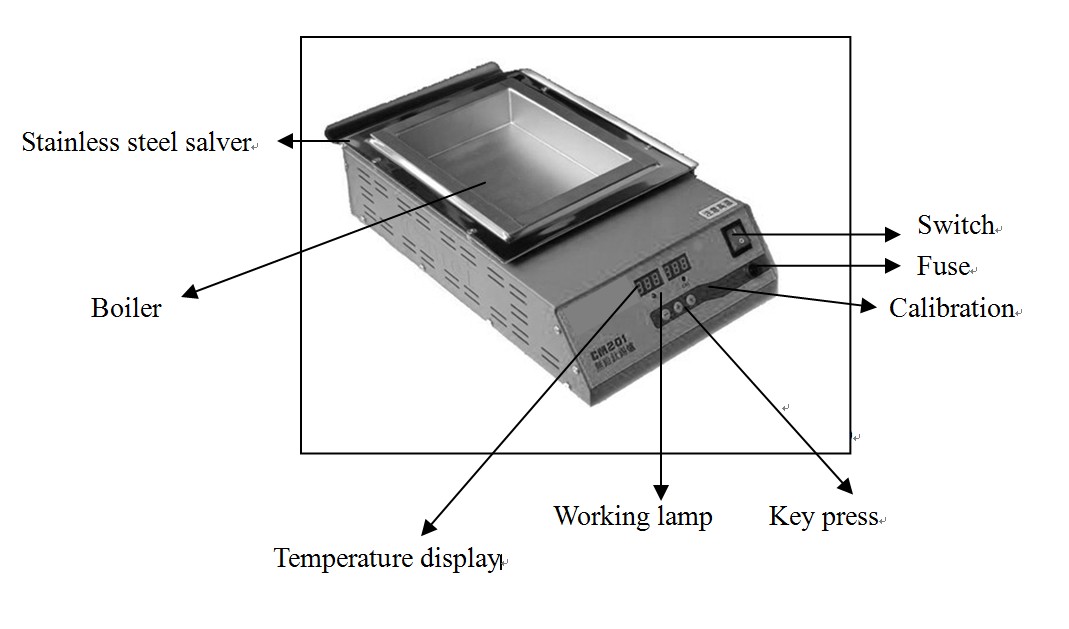

LEAD-FREE TITANIUM ALLOY SOLDERING POT

Operation instruction

Our Lead-free titanium alloy soldering pot passed by SGS, built-in advanced microcomputer digital control and display system, make it more safe, more steady and more accurate. It’s a good tool for electronic fields.



FEATURES:

* With big power heater, only within 25minutes to reach 450 from room temperature, (Different items with a little different heating time.)

* With advanced microcomputer digital control and double displays. make it more accurate heating and fast temperature returning capability.

* The boiler made of titanium alloy, can resist high temperature, cauterization and abrasion, largely prolong the life.

* With temperature setting and locking function, will not be affected by wrong operation.

* The setting value will be saved for long time, and can not be affected by power on or off. With auto sleeping function, prolong the machine’s life.

* With malfunction alarm.









ITEM NO. :

Desk round type:

Model

Range

Power

Whole size (mm)

Pot size (mm)

Tin capacity

CM-508

0-600

250W

266Lx145Wx120H

Φ50x40

0.6kg

CM-808

0-600

400W

327Lx175Wx120H

Φ80x40

1.5kg

CM-108

0-600

500W

327Lx175Wx120H

Φ100x40

2.0kg



Stand type:

Model

Range

Power

Whole size(mm)

Pot size (mm)

Tin capacity

CM-600

0-600

2400W

380Lx300Wx680H

300x240x50

26.2kg

CM-602

0-600

2600W

430Lx330Wx680H

350x250x50

31.8kg

CM-606

0-600

3200W

480Lx340Wx680H

400x260x50

37.8kg

CM-608

0-600

3500W

530Lx380Wx680H

450x300x50

49.1kg



Desk quadrate type:

Model

Range

Power

Whole size(mm)

Pot size (mm)

Tin capacity

CM-558

0-600

300W

327Lx175Wx120H

55x55x45

1.32kg

CM-107

0-600

500W

266Lx145Wx120H

100x70x45

2.3kg

CM-118

0-600

600W

327Lx175Wx120H

110x80x45

2.7kg

CM-101

0-600

800W

327Lx175Wx120H

100x100x45

3.2kg

CM-141

0-600

900W

397Lx205Wx120H

140x100x45

4.5kg

CM-161

0-600

1000W

397Lx205Wx120H

160x110x45

5.7kg

CM-181

0-600

1200W

446Lx245Wx120H

180x140x45

8.2kg

CM-201

0-600

1500W

446Lx245Wx120H

180x140x45

9.8kg

CM-252

0-600

1800W

536Lx285Wx120H

250x160x45

13.1kg

CM-282

0-600

2000W

536Lx285Wx120H

280x200x45

18.3kg

CM-206

0-600

1000W

420Lx100Wx110H

200x100x45

6.5kg

CM-208

0-600

900W

420Lx120Wx110H

200x80x45

5.2kg

CM-268

0-600

1000W

470Lx120Wx110H

250x80x45

6.3kg

CM-308

0-600

1200W

520Lx120Wx110H

300x80x45

7.9kg

CM-206

0-600

1000W

420Lx140Wx110H

200x100x45

6.5kg

CM-261

0-600

1200W

470Lx140Wx110H

250x100x45

8.2kg

CM-302

0-600

1500W

520Lx140Wx110H

300x100x45

9.8kg







Working conditions:

Working voltage: AC220±10V

Working temperature: 0-55

Working temperature: < 90% no dew
